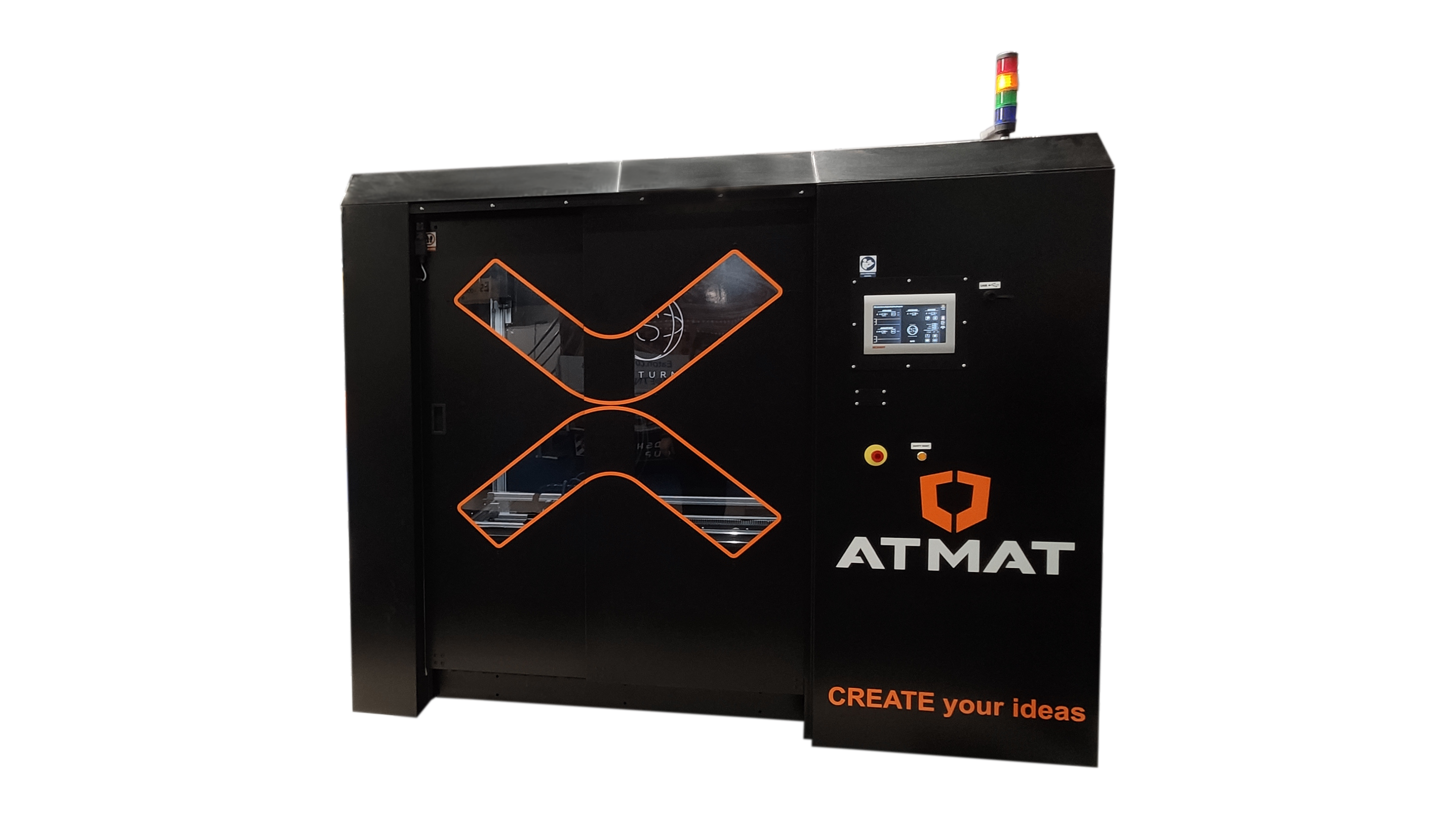

Saturn
New face of production
The device is created for the production of large-size models in additive manufacturing technology. The printer is based on an industrial solutions, offering a very wide range of possibilities. The proprietary solutions guarantee high quality and stability of work. Safety systems meet the requirements of production plants. The machine is used in the industrial, architectural, automotive and aviation industries.
Optimally matched parameters
for maximum efficiency
Printer working area
X:1200 Y:1000 Z:1000 mm
Grand Prize for the product
awarded during XI 3D Printing Days
Granite bed with a high efficient heating system
A heated working platform is a requirement for printing large-scale components. Working platform is equipped with a high efficient heating system, thanks to which the user can be sure that the whole work bed will be heated to the set temperature. Granite is the material used as a work bed, has very good adhesive properties and does not deform during printing even the largest models.
High-performance printing system
The printer is equipped with two heads specifically designed for large-scale production. The first head is a high-performance one, uses two extruders that have connected filament mixing tank. Thanks to this, we can print at high speed, processing up to 0.5 kg of material per hour. The second head is an auxiliary one and has a single extruder, which is used to produce support structures or models requiring higher accuracy.
Intelligent machine control systems
The printer is equipped with intelligent control systems that allow the user to react quickly to problems that may arise. In case of power failure, the user can resume the printing process, which in case of prints lasting several days guarantees stability and uninterrupted production. The device is also equipped with a sensor of lack of filament flow, preventing sudden interruption of the printout, as well as a sensor for measuring the weight of the filament, allowing to predict the quantity of material needed to print the prepared model. Besides, the device is equipped with automatic nozzle height calibration, semi-automatic bedlevelling, semi-automatic filament exchange and automatic levelling of the XY frame.
Thermally insulated, heated chamber
Maintaining a stable environment inside the printer's working chamber is a key function that impacts on the material used for printing. Thanks to the constant temperature in the printed model there is no processing shrinkage, causing delamination of the layers and adhesion of the model to the bed is improved.
Filament case with dehumidifying containers
While designing a large-format 3D printer, it was important to assure the uninterrupted operation, which is the basic principle for long large-format prints. A filament case was created, which can hold 3 spools of filament, each up to 10 kg in weight. This solution guarantees long-term printing and continuous work without the need to replace materials. Additionally, the filaments are located in containers with dehumidifiers to limit the absorption of moisture from the air, which guarantees stability of their properties.
Meeting health and safety requirements
The design meets all strict health and safety requirements. Compliance with OHS principles is ensured by blocking access to the printing chamber during the production process, light-signalling informing about the stages of the printer's work, specialized marking of dangerous elements and appropriate buttons enabling the immediate stop of the current operation. These printer properties make it a professional industrial machine, adapted to be operated in production plants.
Discover new face of production
| Technical specification | ||
| Printing technology | FFF (FDM) | |
| Specification of printer | Working area | X:1200 Y:1000 Z:1000 mm |
| Housing | Stable, aluminium sheet construction. Light column and safety switch on the outside of the housing. Separate cabinet for the materials. | |
| Printing environment | Closed working chamber with temperature control | |
| Max. chamber temperature | 45°C | |
| Working bed | Bed autolevelling, 4-zone working platform heating system |
|
| Working bed material | Granite | |
| Maximum bed temperature | 100°C | |
| Head | Nozzle diameter |
Main: 1mm, 1.5 mm, 2mm, Auxiliary: 0.5mm, 1mm, 1.5mm |
| Number of heads | 2 | |
| Number of extruders | 3 | |
| Extruder type | Direct | |
| Maximum head temperature | 340°C | |
| Parameters of printing process | Layer heigh | 0.2 – 1 mm |
| Nominal printing speed | 200 mm/s | |
| HQ printing speed | 100 mm /s | |
| Maximum passage speed | 300 mm/s | |
| Positioning accuracy of the X/Y axes | 50 µm | |
| Positioning accuracy of the Z axis | 10 µm | |
| Software | Simplify3D | |
| File extensions supported by software | .stl, .obj | |
| Filament | Materials | PLA, PET-G, PA, ABS* Support: PVA *for printouts with limited geometry |
| Material diameter | 2.85 mm | |
| Filament form | Spool | |
| Supported spool weights | 3 x 2.5kg/4.0kg/8.0kg | |
| 3D printer operation | Communication | USB 2.0 stick |
| Supported formats | .gcode | |
| Control | HMI with customized interface | |
| Working environment temperature | 10 - 30°C | |
| General data | Power | 400V/50Hz |
| Max. power consumption | 9000 W | |
| Average power consumption in operation for PLA | 1500 W | |
| External dimensions |
2600 x 2200 x 2500 mm; (width x depth x height) |
|
| Weight | 1500kg |
Set of components
Saturn 3D Printer
Exploitation kit
Filament (4 x 8 kg)
Technical documentation
